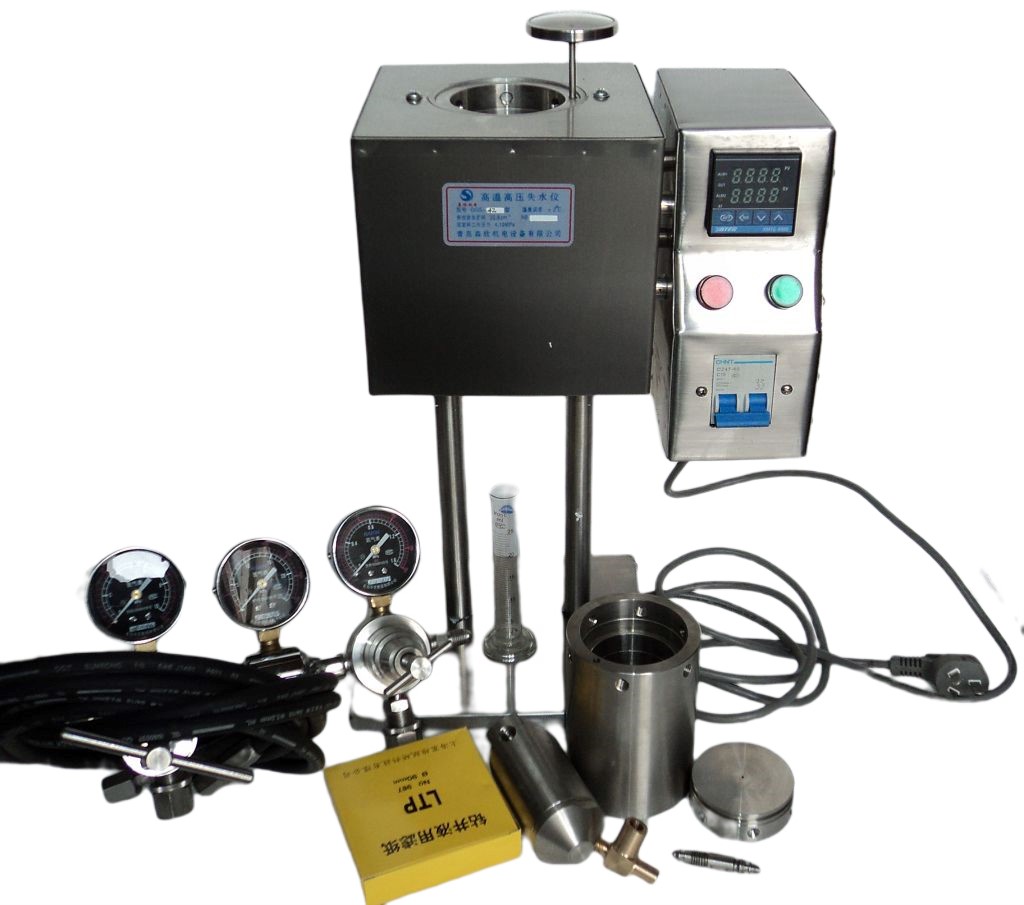

The HTHP (High Temperature, High Pressure) Filter Press is designed for testing drilling fluids under elevated temperatures and pressures. The unit simulates various downhole conditions and provides a reliable method for determining the effectiveness of the material being tested.
The High Pressure-High Temperature (HPHT) Filter Presses are an efficient means of evaluating the filtration properties of drilling muds at high temperatures and pressures. The cells have a filtering area of 3.5 in2 and can be operated at pressures up to 900 psi with the compact, easily attached CO2 pressuring unit provided.
The Model HFP-42 HTHP Filter Press is equipped with a 175 mL sample cell and the working temperatures above 350°F (177°C), making it ideal for laboratory use. Also included is a regulator manifold system for connecting to bottled nitrogen for higher pressures up to1, 800 PSI (12,400 kPa)
Filter Press HTHP | |||
Part No. | Model | Specification | Remark |
170-02 | HFP-42 | The digital system is accurate and controllable. Maximum Temperature : 350℉ (177℃) Maximum Pressure Cell : 1800 psig (12.4 MPa) Maximum Backpressure : 750 psig (5.17 MPa) Sample Cell Volume : 175 ml Receiver Volume : 15 ml Filtering Area : 3.5 in2 (22.58 cm2) Pressure Connection : Nitrogen or Carbon Dioxide Heating Capacity :400 Watts Power Requirement : 115/230 VAC, Frequency 50/60 Hz Size: 320×320×650 mm Weight:36kg | |
171-02 | HFP-71 | The digital system is accurate and controllable. Maximum Temperature : 500℉ (260℃) Maximum Pressure Cell : 1800 psig (12.4 MPa) Maximum Backpressure : 750 psig (5.17 MPa) Sample Cell Volume : 500 ml Receiver Volume : 100 ml Filtering Area : 3.5 in2 (22.58 cm2) Pressure Connection : Nitrogen or Carbon Dioxide Heating Capacity :800 Watts Power Requirement : 115/230 VAC, Frequency 50/60 Hz Size: 720×440×340 mm Weight:45kg |
