The development of instrumentation to measure material properties has paralleled our understanding of their molecular properties. We now use viscometers that routinely measure viscosity as a function of shear rate together with rheometers that can characterize the solid-like properties of the same material.

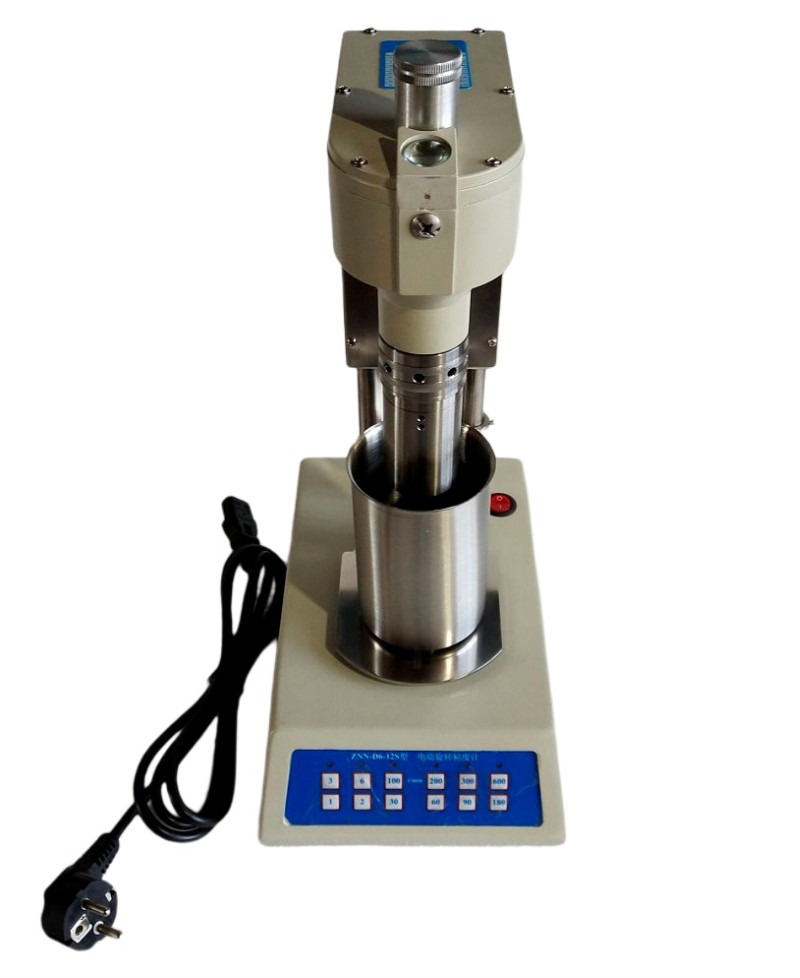

The SENXIN GROUP ® Model SX-12D the 12 speeds viscometer a new type direct indicating instruments, this is a doddle to control with its well-designed on-screen,intelligence Single-Chip Computer system is commissioned in instruments which are available in 6 and 12 speeds designs for use on either 50 Hz and 60HZ electrical power. The standard power source is 220 volts.
The 12 speeds electric viscometer gives new meaning to the term “stand-alone.”
API Tests Pre-programmed
This rheometer is equipped with R1 Rotor Sleeve, B1 Bob, F1 Torsion Spring, and a stainless steel,sample cup for testing according to American Petroleum Institute Recommended Practice.
Push button design for easy operation and better control
Power: 220 VAC, 50/60 Hz
12 preset Speeds: 600,300,200,180,100,90,60,30,6,3,2,1
Speed Accuracy: 0.001 rpm
Dial Accuracy: 0.5
Dial Resolution: 0.1
Sample Cup Volume : 500ml
Torsion Spring : F1
Rotor-Bob : R1, B1
Rheometer / Viscometer Specifications | |||
Part No. | Model | Description &Technical Parameters | Remarks |
130-35D | SX-35D | Speeds Range:6 preset(600,300,200,100,6,3) Shear Rate Range (sec-1): .017-1700 Speed Accuracy: 0.001 rpm Dial Accuracy: 0.5 Dial Resolution: 0.1 Sample Cup Volume : 500ml Torsion Spring : F1 (F.02 ) Rotor-Bob : R1, B1 Operating Temperature : 40℉ to 125℉ (4.4℃ to 52℃) Power: 230 VAC, 50 (115VAC,60 Hz) Size: 6.5" × 6" × 18" (16.5 × 15 × 46 cm) | |
130-12 | SX-12D | Power: 220 VAC, 50/60 Hz 12 preset Speeds: (600,300,200,180,100,90,60,30,6,3,2,1) Dial Accuracy: 0.5 Dial Resolution: 0.1 Sample Cup Volume : 500ml Torsion Spring : F1 (F.02 ) Rotor-Bob : R1, B1 Operating Temperature : 40℉ to 125℉ (4.4℃ to 52℃) Size: 6.5" × 6" × 18" (16.5 × 15 × 46 cm) |
