The development of instrumentation to measure material properties has paralleled our understanding of their molecular properties. We now use viscometers that routinely measure viscosity as a function of shear rate together with rheometers that can characterize the solid-like properties of the same material.

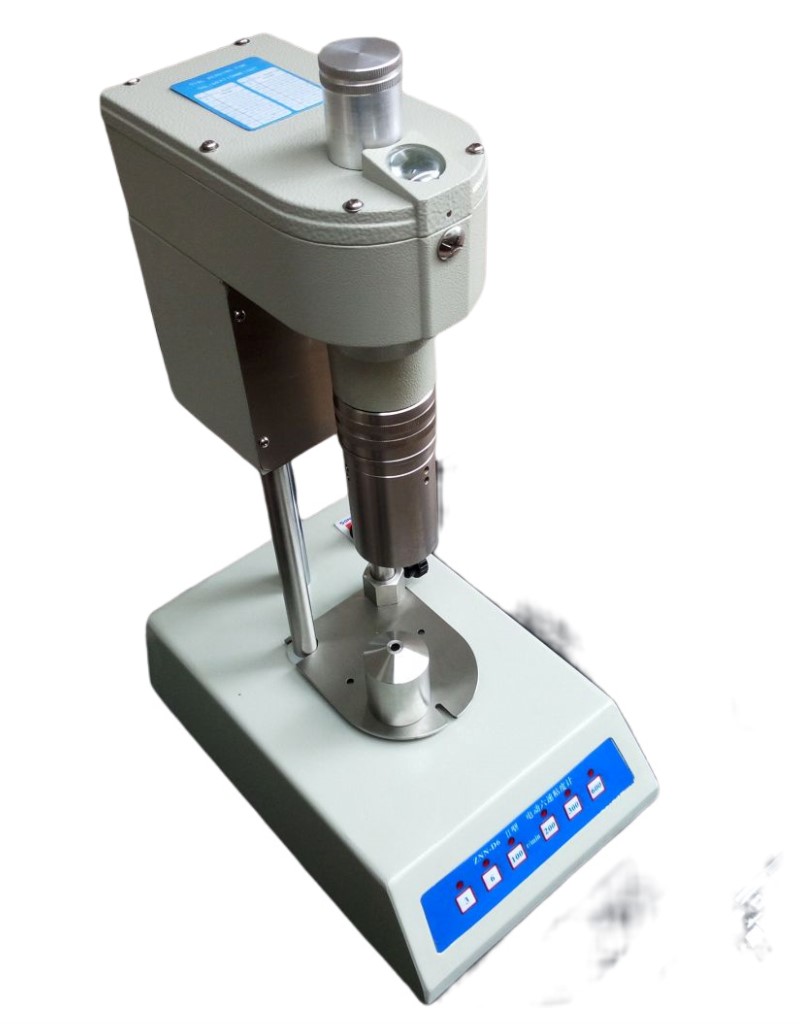

The SENXIN GROUP ® Model SX-12D electric viscometer a new type direct indicating instruments, this is a doddle to control with its well-designed on-screen,the intelligence Single-Chip Computer system is commissioned in instruments which are available in 6 and 12 speed designs for use on either 50 Hz and 60HZ electrical power. The standard power source is 220 volts.
The 6 speeds electric viscometer gives new meaning to the term “stand-alone.”
API Tests Pre-programmed
This rheometer is equipped with R1 Rotor Sleeve, B1 Bob, F1 Torsion Spring, and a stainless steel,sample cup for testing according to American Petroleum Institute Recommended Practice.
Push button design for easy operation and better control
Power: 220 VAC, 50/60 Hz
6 preset Speeds: 600,300,200,100,6,3 RPM
Speed Accuracy: 0.001 rpm
Dial Accuracy: 0.5
Dial Resolution: 0.1
Sample Cup Volume : 500ml
Torsion Spring : F1
Rotor-Bob : R1, B1
Rheometer / Viscometer Specifications | |||
Part No. | Model | Description &Technical Parameters | Remarks |
130-35D | SX-35D | Speeds Range:6 preset(600,300,200,100,6,3) Shear Rate Range (sec-1): .017-1700 Speed Accuracy: 0.001 rpm Dial Accuracy: 0.5 Dial Resolution: 0.1 Sample Cup Volume : 500ml Torsion Spring : F1 (F.02 ) Rotor-Bob : R1, B1 Operating Temperature : 40℉ to 125℉ (4.4℃ to 52℃) Power: 230 VAC, 50 (115VAC,60 Hz) Size: 6.5" × 6" × 18" (16.5 × 15 × 46 cm) | |
130-12 | SX-12D | Power: 220 VAC, 50/60 Hz 12 preset Speeds: (600,300,200,180,100,90,60,30,6,3,2,1) Dial Accuracy: 0.5 Dial Resolution: 0.1 Sample Cup Volume : 500ml Torsion Spring : F1 (F.02 ) Rotor-Bob : R1, B1 Operating Temperature : 40℉ to 125℉ (4.4℃ to 52℃) Size: 6.5" × 6" × 18" (16.5 × 15 × 46 cm) |
