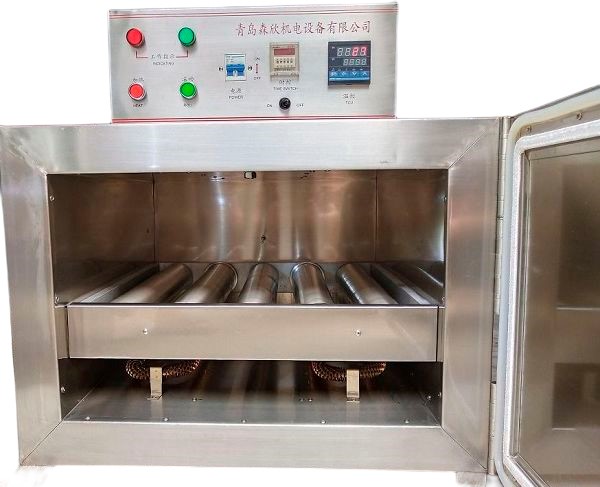

Hot Roller Oven,5 rollers with 8 aging cells,model XGRL-4A
Digital Roller Oven
1. Summary
The temperature control of this roller oven adopts the newest intelligent control technology of personal computer. The temperature can be set directly by virtue of digital display. It is characterized by the deviation instruction, high precision and safe working. In addition, the systems of power and electrical control are set in the upper section of the heater body. The import generator control technology of frequency conversion is used in the apparatus. Therefore, the transmission is steady and the noise is slight. It is also convenient for using, maintaining and repairing.
The usage of the instrument is mainly in the following aspects:
(1) Evaluate the stability of drilling fluid additives (Such as various deflocculates and organic polymers).
(2) Used as a drying oven.
(3) Used as an aging oven.
(4) Used as a ball grinder.
(5) Stir chemical solution.
(6) Mix liquids or solids.
(7) Exclude air from a fluid.
2. Model and specification
Model:XGRL-4A
3. The main technical parameters of apparatus
The major technical parameters of the instrument are listed in the following table.
XGRL-4A roller oven specification
No | name | specification |
1 | Power supply | 220V±5% 50Hz |
2 | Motor power | 370W |
3 | Heating power | 750W×2 |
4 | Temperature range used | 0℃~315℃ |
5 | Temperarture precision | ±1℃ |
6 | Roller speed | 0-50r/min(adjustable) |
7 | Flow rate of sampble in the cell | 0.16 m/s, |
8 | Number of rollers | 5 |
9 | Quantity and Capacity of aging cell | 500ml*8 |
10 | Working volume | 560*360*630mm |
11 | Overall dimension | 690×730×550mm |
